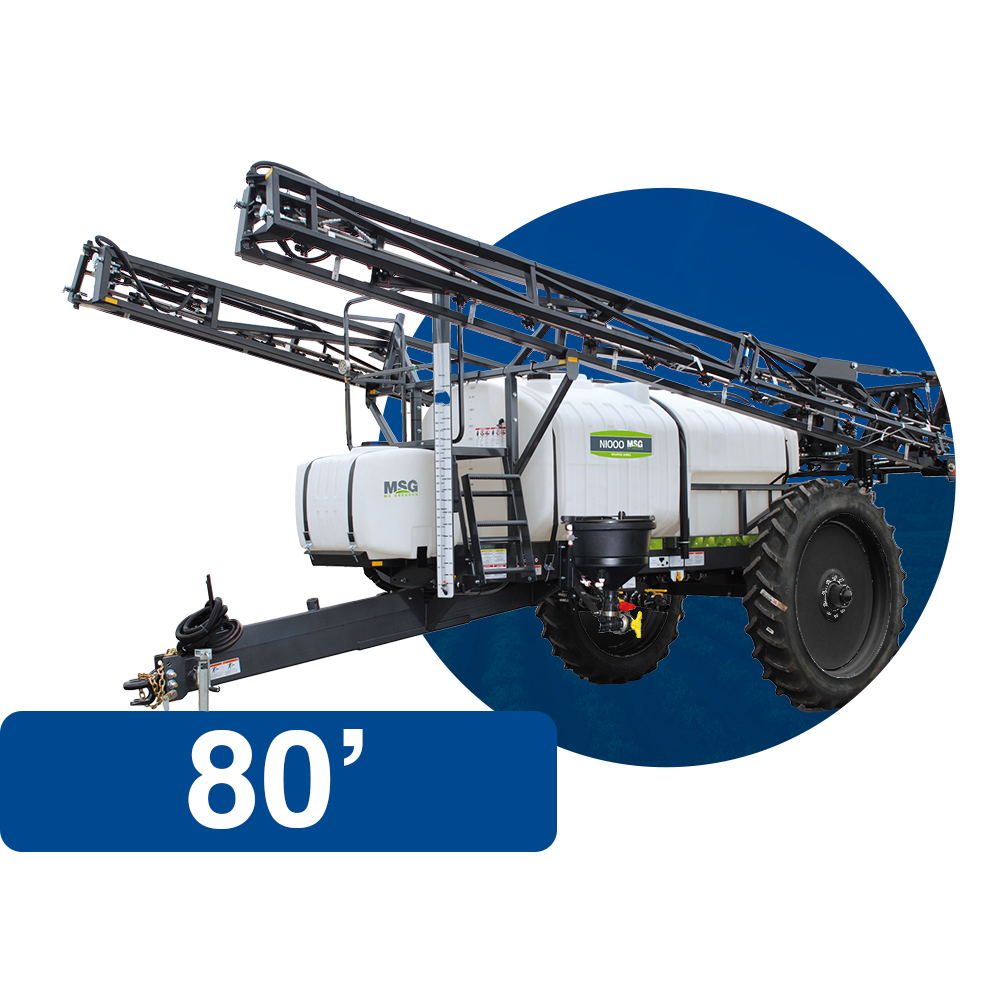

Novation Ramp 80'

1. 7-function electro-hydraulic control, automatic opening/closing (LogicControl lever)

2. 7 sections 5448 triple nozzle holders at 20'' (For 110 or 120 degree nozzle)

3. Rateking Plus 7 section rate controller *

Hypro 9306C-HM1CUB Hydraulic Centrifuge, Tungsten Seals
Pump 13 gpm oil 85 gpm at 100 PSI
802-11 Flow Meter at 492 liters/min (3 to 130 gal. min.)
Rateking Plus Micro-Track Rate Controller | 22-Pin Cable

4. Manual adjustable axle Wheels 320/90R46
Recommended spacing of 90'' to 120''
Wheel spacing on level ground. 63'' to 120''

5. Drain with ball valve and cam stopper

Includes the Essential Unit

1. Air suspension (automatic pressure adjustment)
Recommended 90'' to 120''
Wheel spacing on level ground.
(320/90R46 - 64'' to 120'') (380/90R46 - 66'' to 120'')

2. Premixer - 7 gallons, parallelogram lift, 16'' cover, graduated gauge in liters

3. LogicBoom

Includes the Essential and Prestige unit

1. ARS XTRA - Sprayer Rinse
(Piping/tank/premixer) from tractor.

2. Temporary hydraulic correction of the attitude of the central section (parallel to the ground).
