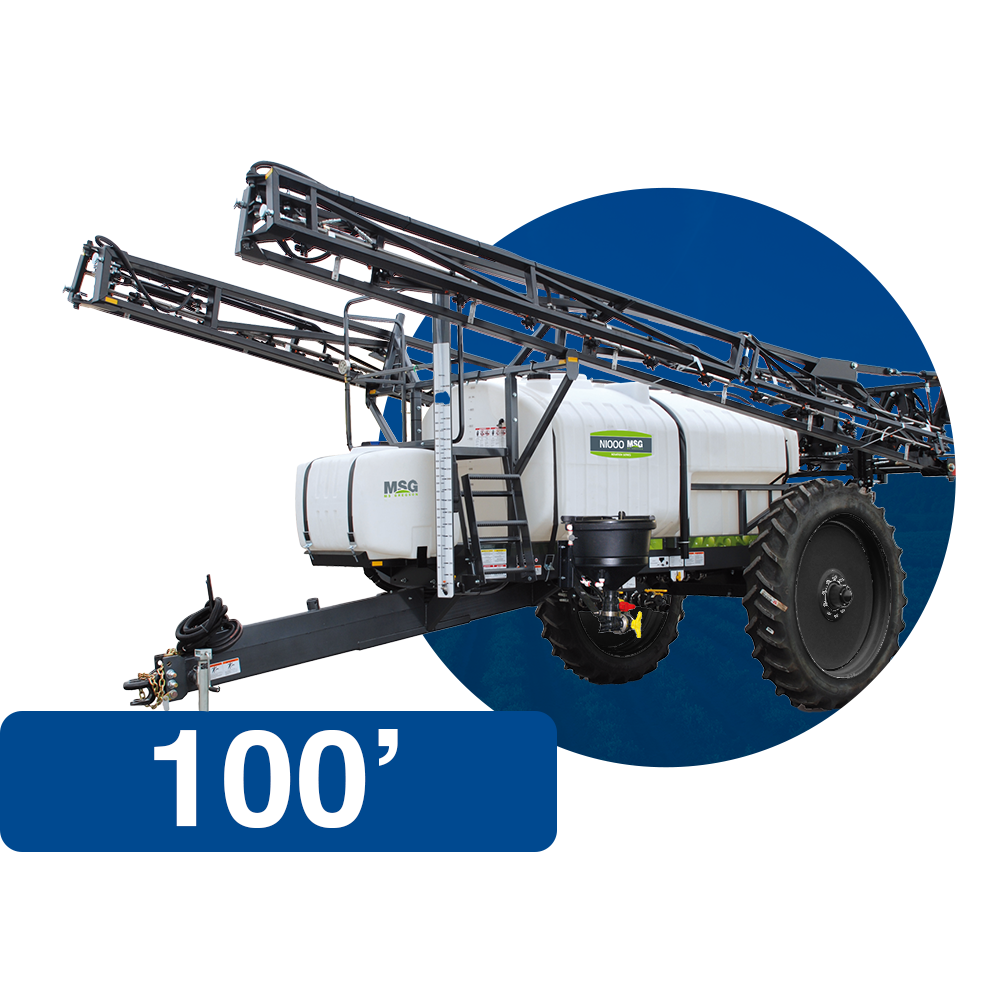

Novation Ramp 100'

1-7-function electro-hydraulic control, automatic opening/closing (LogicControl lever)

2-7 sections 60 triple nozzle holders at 20'' (For 110 or 120 degree nozzle)

3- Rateking Plus 7 section rate controller *
Hypro 9306C-HM1CUB Hydraulic Centrifugal, Tungsten Seals Pump 13 GPM Oil

4-Manual adjustable axle Wheels 320/90R46 Spacing from 90'' to 120'', Wheel spacing on terrain at level from 63'' to 120''

5-Drain with ball valve and cam stopper

6-Filtration assembly for ramp section

7-Basket filter for main tank cover

8-Safety valve - Ball valve at the inlet of each of the tank connections

9-2'' Fill Inlet Quick Coupler and Shut-Off/Non-Return Valve for Main Tank

10-Set of road lights without brake lights, “slow moving vehicle” identification and safety chain.

11-Emergency kit - Metal box with emergency repair kit

Includes the Essential Unit

1-Air suspension (automatic pressure adjustment)

2-Premixer - 7 gallons, parallelogram lift, 16'' cover, graduated gauge in liters

3-LogicBoom - Automatic spray height adjustment. 3 probes

4-100 gallon rinse tank. Manual valve and 2 cleaning nozzles for main tank

5-Set of 4 blue lights, night vision of spraying. Includes wire for connection to battery.

Includes the Essential and Prestige unit

1. ARS XTRA - Sprayer Rinse
(Piping/tank/premixer) from tractor.

2. Temporary hydraulic correction of the attitude of the central section (parallel to the ground).
